HE25-50T110

Smart Energy Storage System 50kW / 110kWh

Air-Cooled | All-in-One | Expandable up to 300kW

HE25-50T110

All-in-One

Battery Energy Storage

HISOKAI specializes in designing and manufacturing advanced, reliable, and highly efficient energy storage systems for renewable energy integration, industrial backup, and smart grid applications

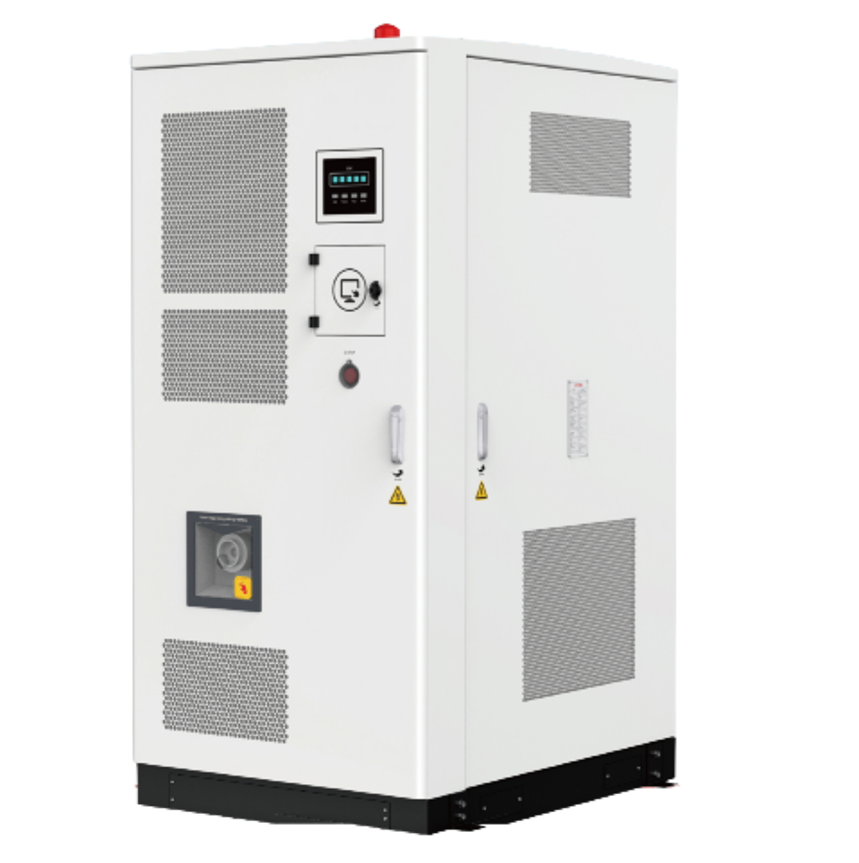

The HE25-50T110 is an All-in-One intelligent energy storage system featuring 50kW PCS, 110kWh LFP battery, air-cooling, and cloud-based EMS. Designed for fast deployment, safe operation, and scalable expansion, it supports parallel connection from 50kW to 300kW to meet diverse power needs across industries.

  • All-in-One integrated cabinet with battery, PCS, EMS, cooling, and fire protection
  • Air-cooled system with smart AC and fans – extends battery life by up to 12%
  • Cloud-based remote monitoring, real-time alerts, and multi-mode operation
  • 4 MPPT inputs, 96kW max PV input, 850Vdc max voltage
  • Parallel scalability from 50kW to 300kW with modular design

Compact, All-in-One and Intelligent Design with Air-Cooling

The HISOKAI HE25-50T110 is a fully integrated energy storage system in a single cabinet, delivering 50kW power and 110kWh LFP capacity with air-cooling technology. Its compact footprint (1.0 × 1.3 × 2.1 m) and modular design make it ideal for limited-space installations. Cloud-based EMS enables remote monitoring and multi-mode operation, while scalable architecture supports parallel expansion up to 300kW.

Reliable, Scalable, Always Connected
HE25-50T110 & Cloud EMS Platform

The HE25-50T110 integrates 50kW PCS, 110kWh LFP battery, air-cooling, and fire suppression in a single IP54 cabinet.
With cloud-based EMS, it enables real-time monitoring, remote O&M, and dynamic mode switching to optimize energy flow and revenue.
Supports parallel expansion up to 300kW — ideal for EV charging, industrial backup, and microgrids.

Connectivity with Ethernet, 4G, and Cloud EMS

The HE25-50T110 features Ethernet LAN and 4G cellular for reliable remote access. Integrated cloud-based EMS enables real-time monitoring, multi-mode control, and predictive maintenance — ensuring optimal performance from anywhere.

Comparison

Product HE25-50T110
Max PV Input Power 96 kW
Start-up Voltage 210V
Max PV Voltage 850 DC
MPPT Operating Voltage Range 330-850 Vdc
Number of MPPTs 4
Max Input Current (per MPPT) 40A x 4
Rated Capacity 110 kWh
Cell Type LFP
Battery Capacity (Cell) 314 Ah
Rated Voltage 352 Vdc
Voltage Range 308-396 Vdc
Rated Charge/Discharge Current 140 A
Max. Charge/Discharge Current 165 A
Cooling Method Air cooling
Rated Power 50 kW
Rated Voltage 3L/N/PE; 400 V
Rated Current 76 A
Grid Frequency 50 Hz/60 Hz
THD (Voltage) <03% (@ rated power)
Cooling Method Smart air conditioner, Smart fan
Fire Suppression Aerosol or Perfluorohexanone
Dimensions (WxDxH) 1000x1320x2145 mm
Weight 1350 kg (Net)
Communication Ethernet, 4G
