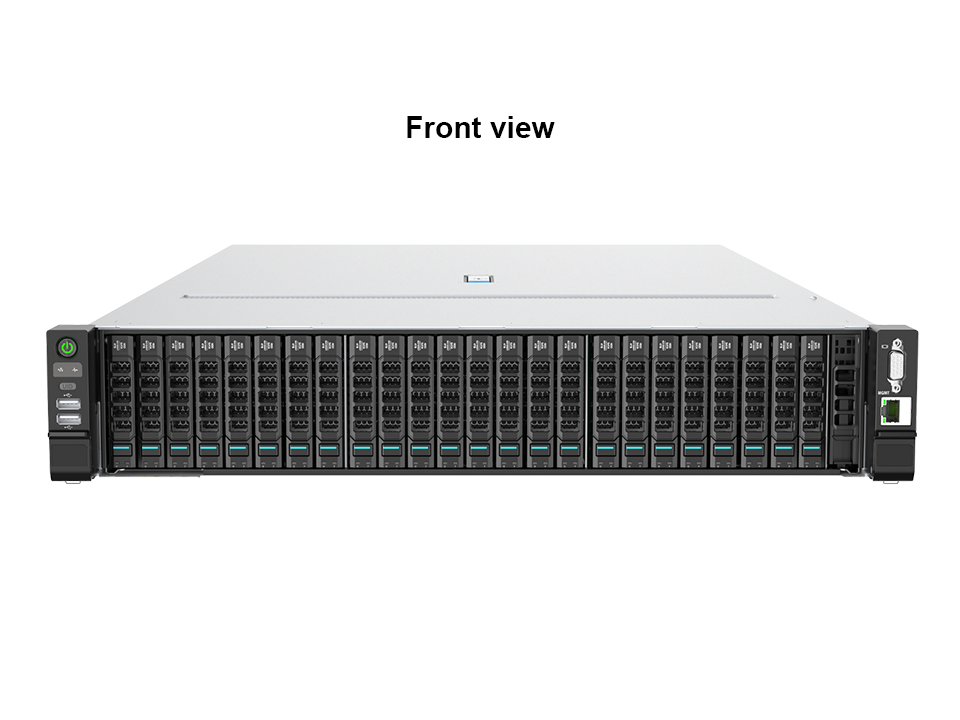

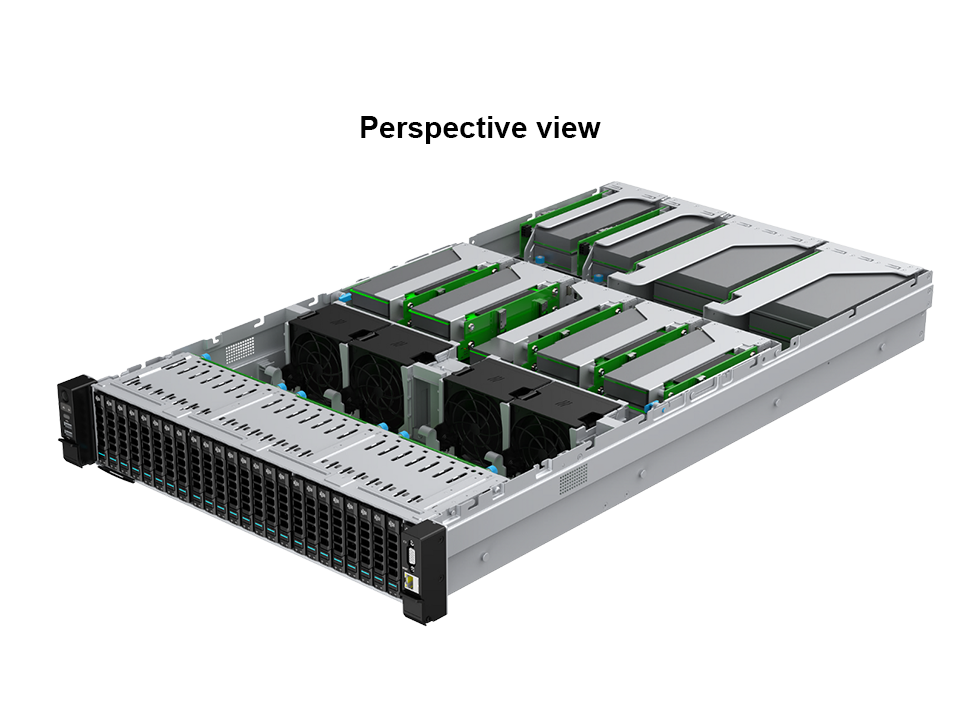

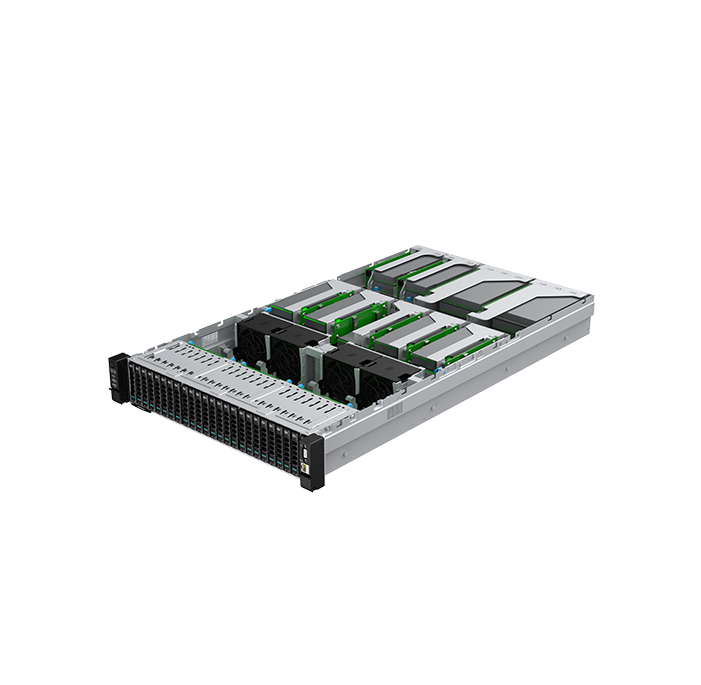

S - Series Server: HS25-S16T256

CPU Support 2x 5th/4th Gen Intel® Xeon® (Up to 64 Cores)

Socket Dual LGA-4677

RAM 32 DIMM Slots (Up to 8TB DDR5)

Slots 4x PCIe 5.0 x16 + 2x PCIe 5.0 x8

Storage 12x 3.5"/2.5" hot-swap bays (NVMe/SATA/SAS)

Network 2x 10GbE (Base-T) Ports

Management 1x Dedicated IPMI Port

PSU 2x 2000W (Optional)

Chipset Intel® C741

Size 2U Rackmountable

OS Compatible Windows WS2022, RedHat 8.7/9.0, VMWare 8.0/7.0U3

Key Features

  • High-performance server platform with enterprise-grade processor support
  • Supports DDR5 ECC memory architecture for enhanced stability
  • Integrated hardware RAID solution for flexible and secure data management
  • High-speed networking with dual 10GbE and dedicated remote management
  • Up to 24 hot-swap drive bays for scalable storage expansion
  • Flexible SSD/HDD configuration supporting SATA/SAS/NVMe options
  • Advanced cooling system with high-efficiency, heavy-duty fans
  • Redundant power supply design for continuous, mission-critical operation

    • Multiple Storage Expansion Support

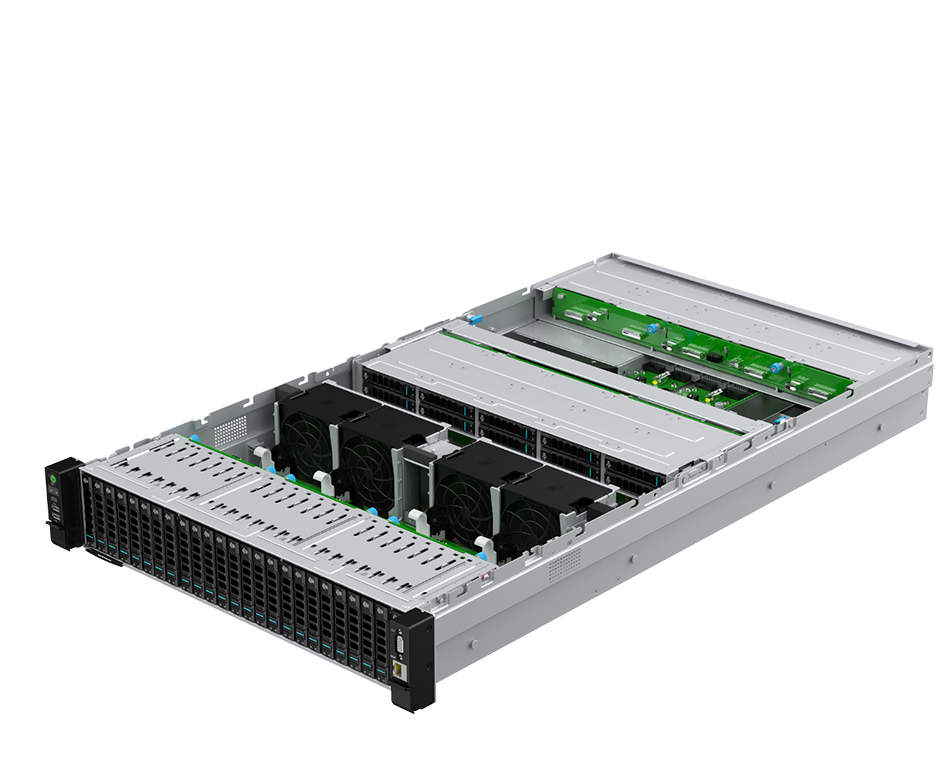

    HS25-S16T256 features a high-capacity storage architecture designed for large-scale data workloads. The system supports up to 24 hot-swap drive bays with flexible SSD/HDD configurations (SATA/SAS/NVMe), allowing massive scalability for enterprise environments. Combined with hardware-accelerated RAID and high-bandwidth network interfaces, the platform delivers the reliability and throughput required for AI data pipelines, video surveillance, media archiving, and big-data analytics.

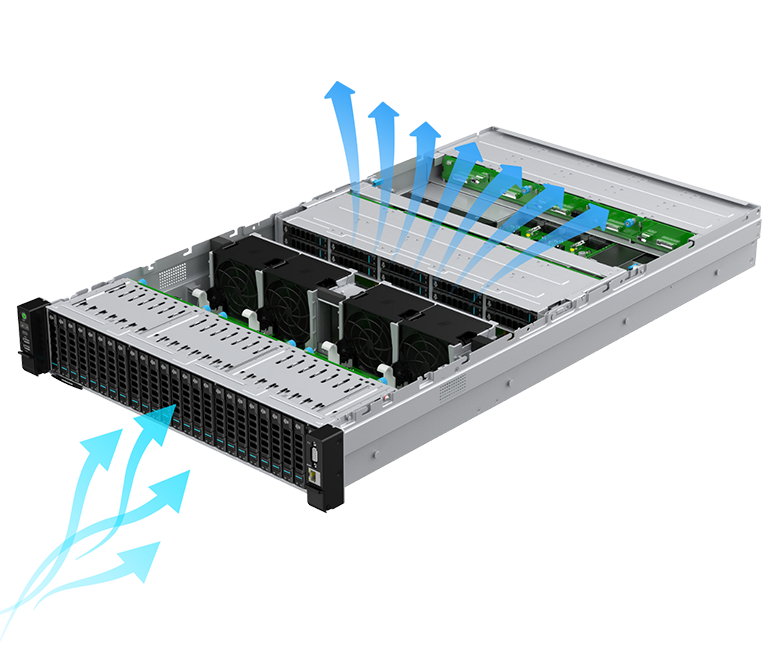

    Cooling System

    High efficiency cooling system-4x Heavy duty fans with Optimal Fan Speed Control, for less power and ensure a stable environment and availability 24/7.

    System Health Monitoring

    The system has an onboard Baseboard Management Controller (BMC)
    chip that supports system health monitoring.

    Onboard Voltage Monitors

    The onboard voltage monitor will continuously scan crucial voltage levels. Once a voltage becomes unstable, it will give a warning or send an error message to the IPMI WebGUI and IPMIView. Real time readings of these voltage levels are all displayed in IPMI.

    Fan Status Monitor with Firmware Control

    The system health monitor embedded in the BMC chip can check the RPM status of the cooling fans. The CPU and chassis fans are controlled via lPMI.

    Environmental Temperature Control

    System Health sensors in the BMC monitor the temperatures and voltage settings of onboard processors and the system in real time via the IPMI interface. Whenever the temperature of the CPU or the system exceeds a user-defined threshold, system/CPU cooling fans will be turned on to prevent the CPU or the system from overheating.

    System Resource Alert

    This feature is available when used with SuperDoctor 5. SuperDoctor 5 is used to notify the user of certain system events. For example, you can configure SuperDoctor 5 to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond a predefined range3.

    Processor

    CPU
    • Dual Socket E (LGA-4677)
    • Intel® 5th/4th Gen Intel® Xeon® Scalable processors
    • Support CPU TDP 385W
    • Up to 64 Cores

    System Memory

    Memory Capacity
    • 32 DIMM slots
    • (1DPC): Up to 4TB 5600MT/s
    • (2DPC): Up to 8TB 4400MT/s
    Memory Type
    • 4800/5600MHz ECC DDR5 RDIMM

    On-Board Devices

    Chipset
    • Intel® C741
    SATA
    • SATA3 (6Gbps) with RAID 0, 1, 5, 10
    IPMI
    • SUPPORT
    Network Controllers
    • Dual Port 10GbE from Intel X550
    Graphics
    • ASPEED AST2600 BMC

    Input / Output

    SATA
    • 8 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 10GBase-T LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 2.0 ports (rear)
    Video
    • 1 VGA Connector

    Form Factor

    • 2U Rackmountable with Rail kit

    Drive Bays / Storage

    Hot-swap
    • 12x 3.5”/2.5” hot-swap NVMe/SATA/SAS drive bays

    Expansion Slots

    PCI-Express
    • 4x double-width GPU (GEN5 X16) + 2x single-width PCIE (GEN5 X16)
    • 2x OCP（GEN5 X8）

    System Cooling

    Fans
    • 4x 8cm Heavy duty fans with optimal fan speed control

    Power Supply

    Power
    • 2x 1600W
    • Optional 2000W
    • Optional 2600W
    AC Input
    • Optional 800W 100-127Vac / 50-60Hz
    • Optional 1200W 200-240Vac / 50-60Hz
    • Optional 1200W 230-240Vac / 50-60Hz
    +12V
    • Max: 66.7A / Min: 0A (100Vac-127Vac)
    • Max: 100A / Min: 0A (200Vac-240Vac)
    • Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
    Output type
    • Backplanes (gold finger)

    OS Compatibility

    OS
    • Windows: WS2022
    • RedHat: RHEL 8.7/9.0
    • VMWare: ESXi 8.0/7.0U3

    Operating Environment

    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 0°C ~ 45°C
    • Non-operating Temperature: -40°C to 70°C
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Dimensions

    Height
    • 87mm
    Width
    • 447.4mm
    Depth
    • 799mm
    Weigh
    • 15KG
    • 32KG
